- Place of Origin: Weifang
- Brand Name: senhai
- Model Number: 4USY-1
- Weight: 465.000 kg

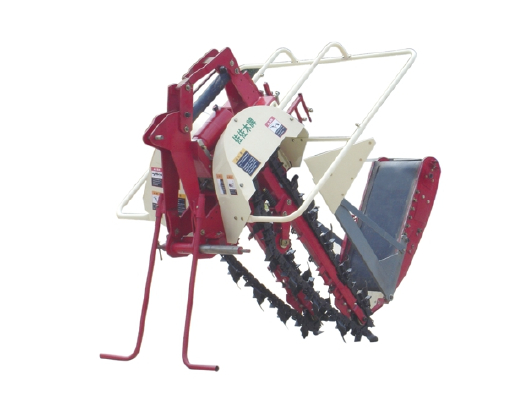

Product Introduction:
This machine be developed by our company and Shandong Agricultural University, which collect all the advantages and characteristics of many kinds of rhizome crops from domestic and abroad, quite suit different soil and many kinds of planting pattern.
Requirements to the farm tractor:
1.Must have the creeper gear shift;
2.Must have the dual stage clutch;
3.Except the lift hydraulic, must need the extra 2 way independent control hydraulic circuit;
4.PTO Speed :540(720)r/min。
- Place of Origin: Weifang
- Brand Name: senhai
- Model Number: 4USY-1
- Weight: 465.000 kg
Technical Parameters:
Item | Unit | Parameters |
Model no. | / | 4USY-1 |
Dimensions(L×W×H) | mm | 2170×1600×1900 |
Structure Weight | kg | 465 |
Equipped power | kW | 40.4-58.8 |
PTO speed | r/min | 540(720) |
Requirements of suspension | / | Rear mounted 3 point link |
Excavate depth | mm | ≤1000 |
Excavate width | mm | 340 |
Working speed | km/h | 0.2-0.3 |
Suit row distance of Chinese Yam | mm | 900-1100 |
