- Place of Origin: Weifang
- Brand Name: senhai
- Model Number: 1KS-255A
- Weight: 630.000 kg

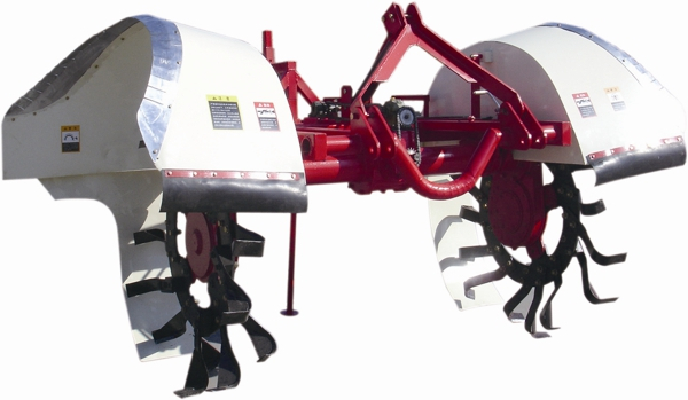

Product Introduction:
This machine is mainly used in organic fertilizer trenching works for graps and other perennial banded crops, also can make trench which will be used for cables or drain line.
Requirements of Eqipped Tractor:
1.Must have the creeper gear shift;
2.Must have the dual stage clutch;
3.Except the lift hydraulic, must have another independent control hydraulic circuit;
4.PTO Speed :540(720)r/min。
- Place of Origin: Weifang
- Brand Name: senhai
- Model Number: 1KS-255A
- Weight: 630.000 kg
Technical Parameters:
Item | Unit | Parameters |
Model no. | / | 1KS-255A |
Equipped power | kW | 47.8-58.8 |
PTO Speed | r/min | 540(720) |
Linkage | / | 3 point link |
Dimensions(L×W×H) | mm | 1950×2800×1600 |
Structure weight | kg | 630 |
Rows of trench | row | 2 |
Row distance | mm | 1638 |
Width of trench | mm | 200-360 |
Depth of trench | mm | ≥550 |
The rotate speed of knives roller | r/min | 167 |
The turning radius of knives roller | mm | 600 |
