- Place of Origin: Weifang
- Brand Name: senhai
- Model Number: 3TG-4QM
- Weight: 88.000 kg
Product Introduction:

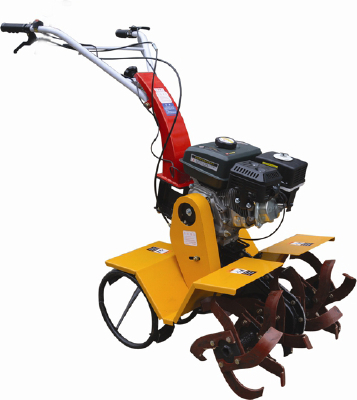

This machine have small size, compact structure, especially suit tilling in small paddy field and dry field.
The height of handle have 4 positions to adjust ,on the left and right can both rotate 180 degree to position.
Use high gear and low gear to work, make operations be flexible and convenient .
The rotary blades and transmission shaft be connected with bolt, to replace it easily and simply.
Biaxial drive, the front shaft working and the rear shaft travelling, be safe and reliable.
Main function:
Mainly be used for rotary tilling and weeding works in the paddy field, mountain terraces, hilly dry field,vegetable and fruit greenhouse,orchard etc.
Main Parts：
One unit of 170F/P gasoline engine , one pair of rotary cultivating roller, one pair of weeding wheel, one pair of traveling wheel, one unit of ditching plow.
- Place of Origin: Weifang
- Brand Name: senhai
- Model Number: 3TG-4QM
- Weight: 88.000 kg
Technical Parameters：
Item | Unit | Parameters |
Model No. | / | 3TG-4QM |
Dimensions（L×W×H） | mm | 1600×710×1130 |
Structure weight | kg | Rotary tillage：88；Weeding wheel：76 |
Rated power | kW | 4.0 |
Rated rotate speed | r/min | 3600 |
Working width | mm | Cultivating：620； Weeding：700 |
Working depth | mm | Cultivating：≥100； Weeding：≥30 |
Working efficiency | hm2／h.m | ≥0.10 |
