- Place of Origin: Weifang
- Brand Name: senhai
- Model Number: 3WF-500L
- Weight: 468.000 kg

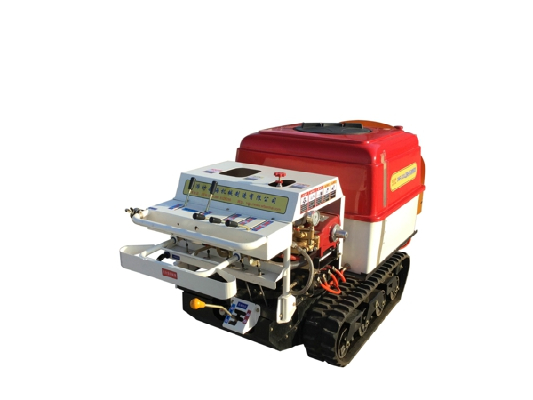

Main Characteristic:
Compact structure, good stability;
Crawler type, small turning radius ;
Moving type:
Remote control self-propelled, manual control self-propelled, riding type manual control self-propelled;
Mode of operating:
Semi-circular more nozzle spraying, Portal frame hanger rod spraying and hand type spray gun spraying;
Range of application:
Widely use in orchard, vineyard, the protection forest and landscape tree lawn to pest control and prevention. Equipped with spray rod , can use for pest control and prevention in shallot , ginger and other commercial crop, also can use for spraying the herbicide in wheat field.
- Place of Origin: Weifang
- Brand Name: senhai
- Model Number: 3WF-500L
- Weight: 468.000 kg
Main Technical Parameters：
Item | Unit | Parameters | |
Trade Mark | / | Zuo Zuo Mu | |
Type | / | Crawler Self Propelled Air-assisted | |
Model no. | / | 3WF-500L | |
Dimensions（L×W×H） | mm | 2380×990×1198 | |
Structure Weight | kg | 468 | |
Matched power | Model no. | / | GT1000 |
Rated power/Rated rotate speed | kW/（r/min） | 5.5/1800 | |
Air Blower | Type | / | Centrifugal |
Diameter of Impeller | mm | 178 | |
Rated power/Rated rotate speed | kW/（r/min） | 1.5/3700 | |
Pump | Type | / | Plunger type |
Model no. | / | LL-80A | |
Rated power/Rated rotate speed | kW/（r/min） | 2.2-3.68/800-1200 | |
Container Capacity | L | 500 | |
